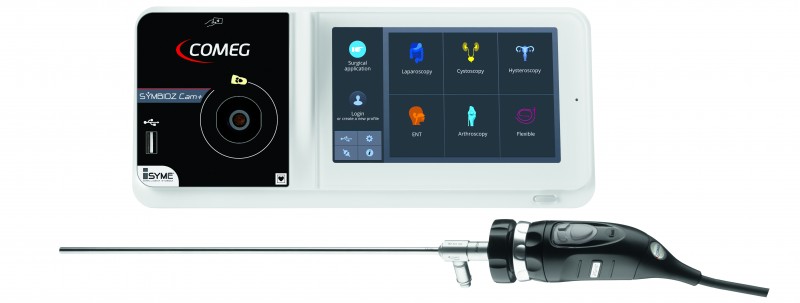

Camera Full HD Ackermann Fusion

  • Producător:Ackermann
Camera Full HD Ackermann Fusion

ACKERMANN FUSION FULLHD CMOS NTSC/PAL CAMERA INCL. CCU, COUPLER AND USB RECORDING/ARCHIVE:  FULL HD CAMERA
TECHNOLOGY
 TOUCHLESS INSTANTANEOUS PERSONALIZATION
 INTEGRATED USB RECORDING
 COMPATIBLE WITH 4K MONITORS    MORE FEATURES: ✓ TRUE FULL HD – NO UPSCALING
✓ 360° MONOFILAMENT CAMERA CABLE CONNECTOR
✓ VARIOUS DIFFERENT OUTPUTS INCL. 2XHD-SDI, WHICH CAN BE CONVERTED TO 3D-SDI OUTPUTS
✓ PERIPHERAL TRIGGERINGS FOR KEYBORDS AND EXTERNAL DEVICES
✓ DEVICE CALIBRATION IN LESS THAN 1 SEC. WITH FUSION CARDS
✓ PAL/NTSC ENCODING IN ONE DEVICE
✓ REALTIME OPTIMIZATION
✓ 16 LANGUAGES – MORE ON REQUEST
✓ PRESET SPECIALITY PROGRAMS: LAP, ARTHRO, URO, ENT, CYSTO, FLEXIBLE
✓ UNLIMITED USER PROFILES
✓ AUTOMATIC PARAMETER ADJUSTMENT ON SONY AND PANASONIC SCREENS
✓ RECOMMENDED TO USE WITH SCREENS SUPPLIED BY ACKERMANN AND ACKERMANN FULL HD
SCOPES
✓ CAMERA HEAD WITH INTEGRATED OPTICAL HD ZOOM 15-35MM
✓ CONTROL VIA 3 PROGRAMMABLE BUTTONS EASY TO REACH AND PROVIDING A MINIMUM OF 8
FUNCTIONS



TECHNICAL SPECS:

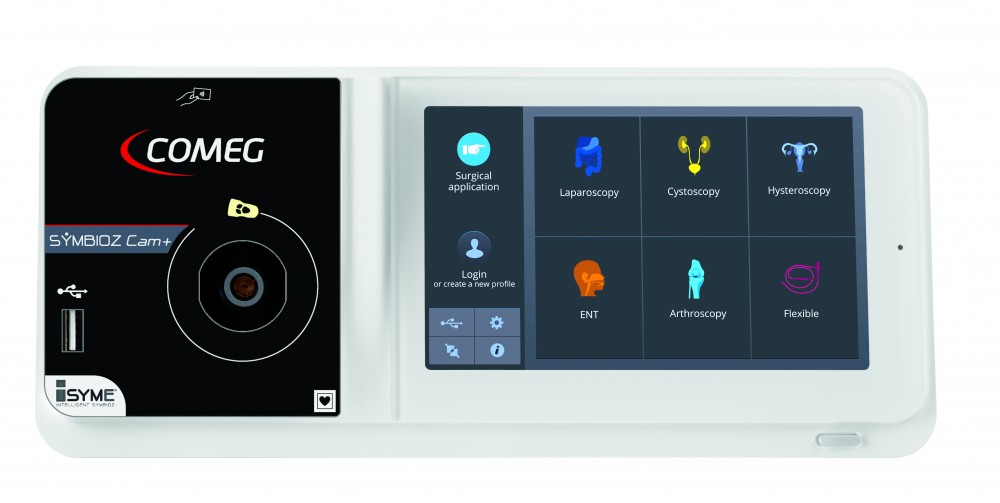

CAMERA CONTROL UNIT TOUCHSCREEN 7" LCD TOUCHSCREEN WITH 16:10 FORMAT
RF TRANSMITTER RFID; FREQUENCY 13,56 MHZ; POWER 70 MW (+18BDM)
COMMUNICATION INEGRATED COMMUNICATION MODULE; CONTACTLESS TECHNOLOGY;
FUSION CARDS
DATA MANAGEMENT TRUE FUL HD RECORDING WITH EXTERNAL USB STORAGE DEVICE
USER PROFILES UNLIMITED
SENSORS INTEGRATED LIGHT SENSOR
INSTRUCTIONS FOR USE ALWAYS AVAILABLE ON SCREEN
VIDEO OUTPUTS CVBS: 1.0 V [P-P] / 75 OHMS, NEGATIVE SYNC;
Y/C: Y: 1.0 V [P-P] / 75 OHMS, C: 0.286 V [P-P] (NTSC),
C:0.3 V [P-P] V [P-P] (PAL) / 75 OHMS, NEGATIVE SYNC;
RGB: 3 X 0.7 V [P-P] & 0.3 V [P-P] / 75 OHMS;
HD-SDI, 3G-SDI: 0.8 V [P-P] / 75 OHMS SMPTE292M,
SMPTE425M-A; DVI-D
DIMENSIONS 310 X 136 X 385 MM
WEIGHT 4,2 KG
ELECTRIC POWER SUPPLY 100 - 240 VAC @ 50 HZ - 60 HZ
POWER CONSUMPTION 50 VA

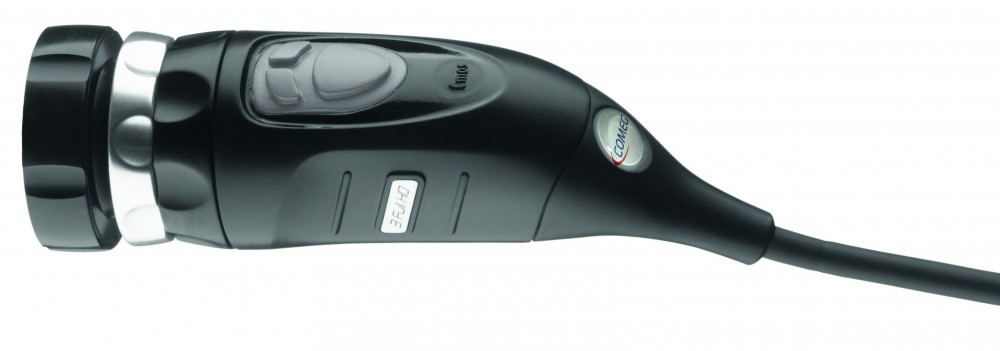

CAMERA HEAD
SENSOR SONY EXMOR R, SIZE ½"
RESOLUTION TRUE FULL HD 1920 X 1080
PIXELS; 4K READY WITH
COMPATIBLE SCREENS
DEFINITION 1080 LINES
OPTICAL INTERFACE INTEGRATED HD ZOOM
FOCAL LENGTH 15 – 35 MM
ACQUISITION 16:9 FORMAT
SCAN MODE PROGRESSIVE SCAN TECHNOLOGY
SENSITIVITY 0.1 LUX
SENSOR DIMENSIONS 149 (D) X 53 MM (H)
SENSOR WEIGHT 260 G
CABLE LENGTH 3M
NOISE 57DB
STERILIZATION STERIS AND STERRAD 100NX



COD PRODUS: 16-2090
