Medisport

Vladimir Schor, Daniela Schor

SC MediSport SRL, 50 Aviator Marcel Andreescu St.sector 1 Bucharest, Romania

vschor@medisport.ro, dschor@medisport.ro

Monica Stanescu

National University of Physical Education and Sport, 140 Constantin Noica St., sector 6, Bucharest, Romania

monica_iulia@yahoo.com





Abstract: In this paper we aim to investigate the effectiveness of the rehabilitation and postural correction method called Backfix on a group of 20 office workers in a high-tech company, who perform their work in sitting positions over 8 hours per day. The Backfix method, which is currently the European trademark registered by MediSport SRL, has two components: the evaluation part, which measures the muscle imbalances - agonist-antagonist chains (with two coefficients) and the level of mechanical work where the balance can be achieved; and the correction part, which uses highly effective learning software to control the muscular rebalancing trajectory. All subjects have been evaluated in terms of the groups of muscles involved in maintaining the posture of the trunk, and subsequently subjected to a correction program with the following objectives: restoring the right co-operation of antagonists - agonists across the entire range of motion; making the transition from the motion programs of the articulation to the motion of the joint; improving proportional coefficient values that describe the steady state muscles of the spine; increasing the level of force and amplitude, that is, mechanical work, in which the balance of the muscles that stabilize the spine can be maintained. The results were evaluated by comparing the set of biomechanical parameters characteristic of the method (motion amplitude, mean force, maximum force, and mechanical work). The level of achievement of the motor reinforcement parameters was appreciated by a computerized scoring system. After 10 sessions of physical exercise, the subjects have been re-assessed. The result analysis indicates a positively significant evolution of the whole group for all parameters demonstrating the ability of the method to efficiently cover a very wide range of variables as age, gender, personal history, etc., which are normal in a functional group of people with office work.

Keywords: postural correction; rehabilitation; physical education; biomechanics.





1. INTRODUCTION

The framework for performance of lucrative activities specific to the contemporary world involves maintaining the body in a seated position for a long time. This position has a very unbalanced effect on the trunk support muscles. [1] [2] Muscular imbalances induced in this way lead to vicious postures that last for a long time and affect the constituent elements of the spine. [3]It is believed that pains appear after 10-15 years of maintaining vicious positions, as a consequence of generally irreversible changes of posture. This is why, from this point of view, pain is a late alarm signal.

Assessing muscular imbalances for the trunk support muscles may be an early sign of the risks associated with spine damage, allowing for the avoidance of irreversible manifestations. If these have occurred, however, it can be the starting point for restoring the functioning of the spine by muscular compensation of the damage caused by the vicious posture, via postural re-education process. [2]

Postural re-education involves restoring the anatomical and functional possibilities of maintaining a correct posture - balanced eased muscular length and tonus between the muscle chains that define the correct posture, coupled with the restoration of the correct posture engram, in this order.[4] There is a lack of quantitative evidence for ‘ideal’ spinal postures in clinical ergonomics for sitting. [5] Experience has shown us that restoring the anatomical functionalities of maintaining posture is the most difficult part. Once resolved, restoring the posture engram is relatively easy, since under the new conditions the correct posture is maintained with minimal effort. [6] [7] Helped by a physical therapist, the subject quickly sees the advantage of correct posture, both conceptually and physically. This element quickly strengthens the correct posture engram.

In addition, recent studies highlight the fact that correct posture reduces the production of the stress hormone, cortisol, and facilitates the production of the creativity hormone, the testosterone.[8]



• Backfix method

With the Backfix method, which is currently the European trademark registered by MediSport SRL [9], the postural re-education process gets a consistent support. The method allows safe and efficient progress of the most difficult phase of the process - muscle rebalancing, and includes two components:

• Evaluation part measuring the muscle imbalances - agonist-antagonist chains (with two coefficients thoraco-lumbar balance CETOLO and the anteroposterior thoracic balance coefficients CETAP) and the level of mechanical work where the balance can be achieved;

For each subject we measured the mechanical work values [in Joules] corresponding to the three exercises that define the method, starting from the Force - Amplitude curves associated with the exercises:

• lying face-down, back arm traction (Trbrf);

• lying face down, front arm traction (Trbrs);

• lying down on the back, raising knees to the chest (Trgnil).

Based on the results of these exercises, the CETOLO thoraco-lumbar balance coefficients and the CETAP anteroposterior thoracic balance coefficients are calculated. The optimal values of these coefficients are between 0,85 – 0,90. [7]

• Correction part, which uses highly effective learning software to control the muscular rebalancing trajectory.

Subjects are submitted to a program correction with the following objectives:

a) Restoring the right co-operation of antagonists - agonists across the entire range of motion.

b) Making the transition from the motor programs of antalgic blocking of the joint, to the motion ones.

c) Increasing the level of force and amplitude, namely mechanical work, in which the balance can be maintained between the muscle chains that stabilize the spine.

d) Improving the proportional coefficient values that describe the balance state of the muscles supporting the spine.

In order to achieve the proposed objectives, after performing the tests, for each subject, the deficient muscle chains as well as the parameters of the computerized kinetic model that defines the kinematics and the dynamics of the exercise are established. The model type to be defined is rectangular, in the frame of the force-amplitude of motion. Model tracking is done through feedback that visualizes the relationship between model and practice. [10][11] The parameters of the model are customized according to the individual values measured in the initial testing. It was conceived in such way that if the subject reproduces the model with a precision of software between 7.5 and 8, the objectives of the program are automatically achieved. [12][13] We can consider that we are using this kind of feedback as an e-training method, which allows the subject to achieve the goal based on simple instructions. It is enough for the subject to understand what route he / she should follow on the line controlled by his / her movement for the score to increase. The subject does not have to understand the physiological and experimental bases of motion control that underpin the development of the model [12][13] He simply follows the pattern during the execution of the movement and gets a visual quality result by overlaying the model‘s graph with the graph of the motion achieved by him and a numerical quantitative result by the score penalizing the execution errors, thus reducing the perfect achievement that would correspond to the score of 10.





2. RESEARCH DESIGN



2.1. Aim and hypothesis

This paper aims to investigate the effectiveness of the Backfix postural correction and recovery system in the framework of muscle imbalances generated by professional activities. The working hypothesis was that an optimization is expected, following the application of the exercise program specific to this method, in the muscular imbalances identified in the muscle chains that ensure proper posture.



2.2. Subjects

The experiment included a group of 20 people from a high-tech company, people who sit on a chair over 8 hours a day to perform their office work.



2.3. Research method

All subjects were evaluated based on the chains of muscle groups involved in maintaining the trunk posture, in accordance with an original methodology [10] and using an Ergocontrol type system of computerized kinetic therapy. [10][11][12][13] Based on the results of these tests, the CETOLO thoraco-lumbar balance coefficients and the CETAP anteroposterior thoracic balance coefficients were calculated. In order to assess the evolution of the group we used status diagrams and group statistics. The status diagrams are polar diagrams in which each point is characterized by the value of the imbalance of the muscle chains (represented by ratio / angle) and the value of the maximum mechanical work [J] at which the targeted muscle chains can still support the straining effort in balanced state (represented by the value of the vector radius). [12]



2.4. Results and interpretation

Following the initial testing and discussion of results, 20 employees opted for enrolment in the Recovery Program. The initial situation of subject evaluation for Backfix specific tests is characterized by the values (in Joules) of Table 1.1 and Diagrams 1.1 and 1.2.



Evaluation tests:

No. subject	Trbrs [J]	Trbrf[J]	Trgnil[J]	CETAP[%]	CETOLO[%]
1	121	154	46	0,79	0,30
2	64	144	40	0,45	0,28
3	43	76	39	0,57	0,52
4	116	169	35	0,69	0,21
5	122	215	37	0,57	0,18
6	156	179	93	0,87	0,52
7	31	115	43	0,27	0,37
8	86	172	74	0,50	0,43
9	53	123	40	0,43	0,32
10	33	75	25	0,44	0,33
11	70	153	57	0,46	0,35
12	110	187	55	0,59	0,29
13	69	103	32	0,67	0,31
14	90	114	56	0,79	0,44
15	71	114	58	0,62	0,51
16	75	137	55	0,55	0,40
17	46	136	23	0,34	0,17
18	12	121	49	0,10	0,40
19	56	105	40	0,53	0,38
20	65	118	49	0,55	0,42
Means	74.45	135.5	47.3	0,54	0,36



Table 1.1. Initial values of the assessment tests specific of Backfix method



Table 1.1 shows that initial imbalances in the CETOLO lumbar region (0,36) are greater than those in the CETAP cervical area (0,54). The recovery program was devised over 10 sessions, with a frequency of 3 sessions per week. After 10 sessions the subjects were re-evaluated. The results are shown in Table 1.2. and diagrams 1.3 and 1.4.

During the 10 sessions, the parameters of the computerized kinetic model that defined the exercise kinematics and dynamics were adjusted each time when the subject scored between 7.5 and 8. The effects of applying the exercise program were evaluated by comparing the set of initial and final biomechanical parameters, which are characteristics of the method.

The results presented in Tables 1.2. and 1.3 show a significant increase in the average of the group, both for the coefficients CETAP, from 0,54 to 0,64 and CETOLO, from 0,36 to 0,59, therefore, it‘s an improvement of the proportionality reports. This improvement is associated with positive changes in posture.[7]





Evaluation tests:

No. subject	Trbrs[J]	Trbrf[J]	Trgnil[J]	CETAP[%]	CETOLO[%]
1	119	196	98	0,61	0,50
2	105	167	124	0,63	0,74
3	87	59	81	0,68	0,92
4	159	190	90	0,47	0,83
5	194	197	87	0,99	0,44
6	169	226	134	0,75	0,59
7	80	166	108	0,48	0,65
8	126	175	79	0,72	0,45
9	60	166	86	0,35	0,52
10	130	158	80	0,82	0,51
11	57	91	47	0,62	0,52
12	119	161	104	0,74	0,65
13	137	204	135	0,67	0,67
14	128	237	100	0,54	0,42
15	83	114	70	0,72	0,61
16	106	150	112	0,71	0,75
17	103	165	81	0,63	0,49
18	64	163	81	0,39	0,50
19	86	120	82	0,71	0,68
20	177	185	68	0,67	0,38
Mean	114.45	164.5	92.35	0,645	0,59



Table 1.2. Final values of sample tests specific for the Backfix method







	P D*	P D	P D	P D	P D	t	df	Sig. (2-tailed)
	Mean	Std. Deviation	Std. Error Mean	95% CID** Lower	95% CID** Upper
Trbrs	-40	31,71	7,09	-54,83	-25,16	-5,64	19	,00
Trbrf	-29	44,38	9,92	-49,78	-8,23	-2,92	19	,009
Trgnil	-45,05	25,63	5,73	-57,04	-33,05	-7,86	19	,00
CETAP	-,106	,19	,042	-,19	-,016	-2,48	19	,023
CETOLO	-,23	,17	,038	-,31	-,16	-6,19	19	,000

*PD=Paired Differences

**CID=Confidence Interval of the Difference



Table 1.3. Paired sample test results



The analysis of the coefficients indicates a significant positive evolution of the whole group to all parameters, demonstrating the ability of the method to efficiently cover a very wide range of initial conditions such as age, gender, personal history, etc. that is normally encountered in a functional group of people with office work, involving many hours of sitting.

Increases in mechanical work values on TRBRS and TRGNIL highlight the increased possibilities of maintaining the balance at increased mechanical work. Being deficient groups, they were worked mostly. TRBRF, being the group with the greatest potential for mechanical work at the initial test, was not worked, the program aiming first rebalancing – raising the level of week muscle groups to the strength ones. We see the increase on the group mean for this parameter - TRBRF, from 47,5 to 92,3, as a confirmation that the exercises eliminated the blockages that prevented this group from expressing its real potential.

The results presented in the polar diagrams (Figures 1.1, 1.2, 1.3, 1.4) show synthetically and intuitively the progress in terms of the respective coefficients, namely the significant proximity of the entire group in relation with the target area (marked with green) for both CETAP and for CETOLO.

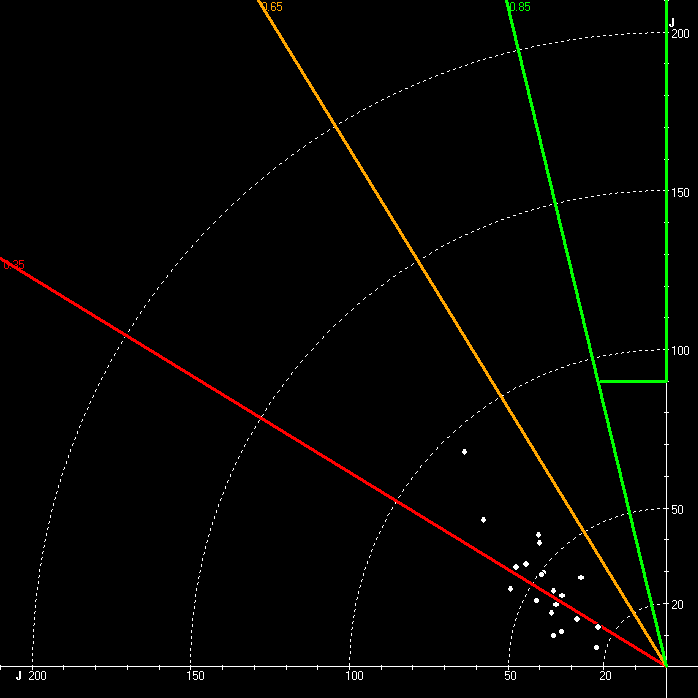

Diagram 1.1. Initial CETOLO

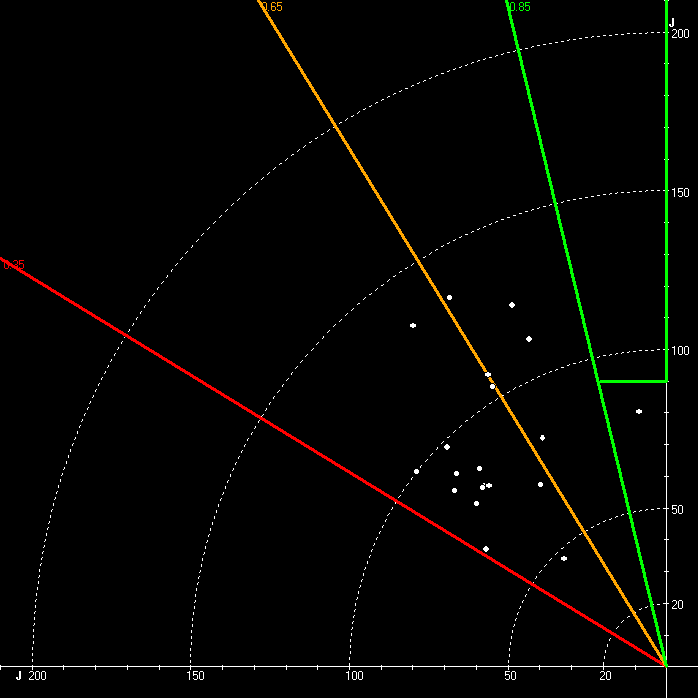

Diagram 1.2. Initial CETAP

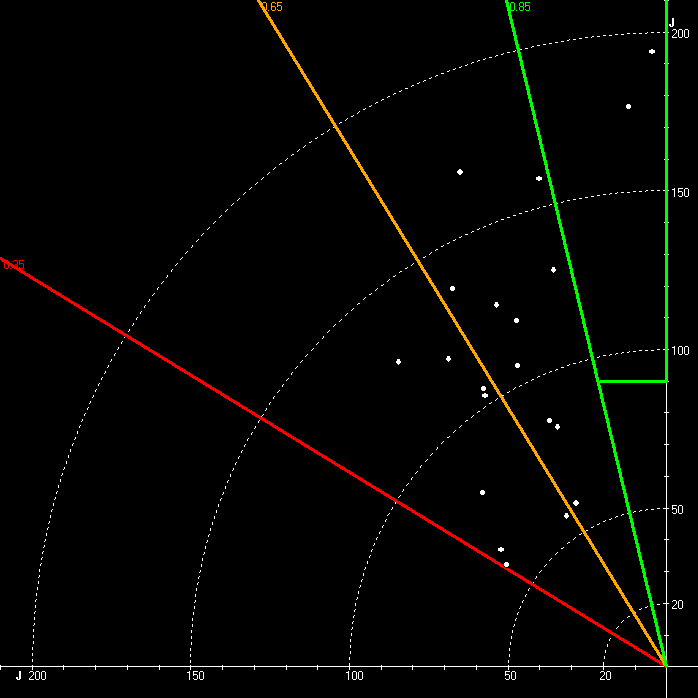

Diagram 1.3 Final CETOLO

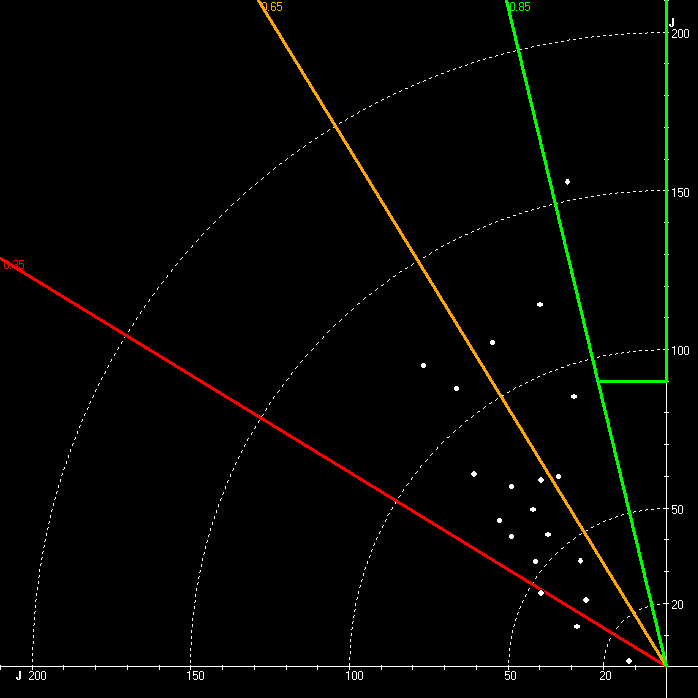

Diagram 1.4. Final CETAP



In functional terms, all these results means for the company‘s staff great effects on rotation movement, as turning the head back during the driving, to look back, or bending movement, in front.

•
•

• CONCLUSIONS

The results show that the Backfix method represents a consistent approach for the postural re-education process. Lumbar rebalancing (expressed by CETOLO coefficient values) is higher than in the cervical area (expressed by CETAP coefficient), which confirms that the Backfix method respects the rebalancing principle according to which the balance of the cervical area is built on the lumbar balance. Significant increases in group-wide values in only 10 sessions are due to the accelerated muscle recovery and motor re-initiation of agonist-antagonist coordination, stimulated by the type of feedback used.

All these progresses have meant easier self-service movements. The high-tech company encouraged the beneficiaries to continue the program until bringing the group into the target area. Another immeasurable collateral effect was to increase the intensity of physical exercise prevention, the employees stimulated each other to go together to the gym. The company‘s management adopted on our proposal the idea of purchasing adjustable office furniture in order to improve the ergonomics of the office chair position with computer.





Reference Text and Citations

• Hirokawa, N., Tanaka, T., Itose, K., Shibue, T., Hayami, T., Sawai, T., Ohmasa, M., 2016. A Seating Effectiveness of a Balance Chair for Maintaining Posture During Light-Duty Work. Advances in Physical Ergonomics and Human Factors. Proceedings of the AHFE 2016 International Conference on Physical Ergonomics and Human Factors, pp. 213-224

• Rahman, C.M., Uddin, S.M., Karim, M.A., Ahmed, M., 2015. Evaluation of Work Postures – the Associated Risk Analysis and the Impact on Labor Productivity. ARPN Journal of Engineering and Applied Sciences, vol.10, no.6, April, pp.2542-2550

• Cho, K.H., Beom, J.W., Lee T.S., Lim J.H., Lee, T.H., Yuk, J.,H., 2014. Trunk Muscles Strength as a Risk Factor for Nonspecific Low Back Pain: A Pilot Study. Ann Rehabil Med, Apr;38(2), pp.234-240

• Mark, L., 1993. Control of human movement, Human Kinetics Publishers, Champaign, Illinois

• Kim, D.J., Cho, M.K., Park, Y.H., Tang, Y.A., 2015. Effect of an exercise program for posture correction on musculoskeletal pain. J PhysThe Sci, 27(6), pp. 1791-1794

• Claus, A.P., Hides, J.A., Lorimer Moseley, G., Hodges, P.W., 2009. Is ‘ideal’ sitting posture real? Measurement of spinal curves in four sitting postures. Manual Therapy, Volume 14, Issue 4, August, pp. 404-408

• Schor, D., 2012. Diagnoza și optimizare biomecanica computerizată a funcției stato-kinetice a coloanei vertebrale. Teza de doctorat, UNEFS, Bucuresti.

• Pranjal, H M., Smrithi P. , 2015. The dual-hormone hypothesis: a brief review and future research agenda Current Opinion in Behavioral Sciences, Volume 3, pp. 163-168

• Schor V., Schor D.,Sindila Gh., Ciubotaru O.,Kreindler L., 2011. Sistem pentru analiza si corectia deplasărilor prin locomoție, Brevet de inventie, editat in Buletinul Oficial al O.S.I.M.

• Schor, V., Schor, D., Sindila, Gh., Tifrea, C., 2014. Software and Methodology for the prevention and early rehabilitation of the spine disorders. Proceedings of International Scientific Conference eLearning and Software for Education, eLSE

• Schor V., Hillerin P, Stupinenu I, Dinescu I, Feredean A., 1993. Ergometru simulator. Brevet de inventie, editat in Buletinul Oficial al O.S.I.M.

• Schor, V., 2001. Tehnologie cu biofeedbak pentru studiul mișcărilor umane ciclice de propulsie (teza de doctorat). Universitatea Politehnică, București

• Stupineanu, I., 2000. Modelul de variaţie a forţei funcţie de poziţie şi traducerea lui în mecanisme de control neuro-muscular. Revista Română de Kinetoterapie, nr.5, Universitatea Oradea, pp.12 - 18

• Schor V., D Schor.D., 2002. Creşterea forţei maxime prin exerciţii de control al mişcării. Conferinţa Ştiinţifică Internaţională, A.N.E.F.S., iunie
